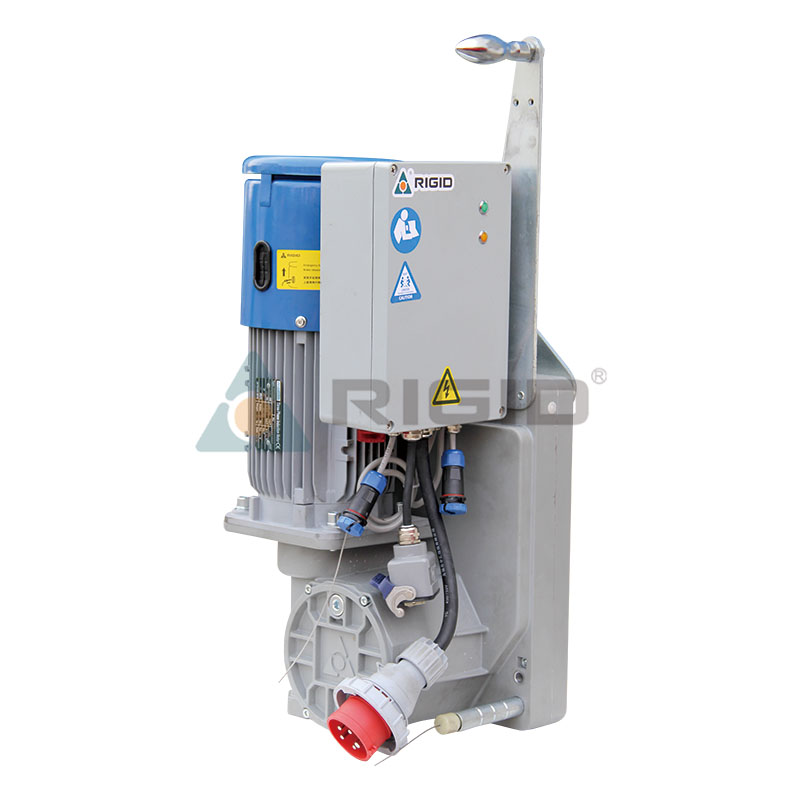

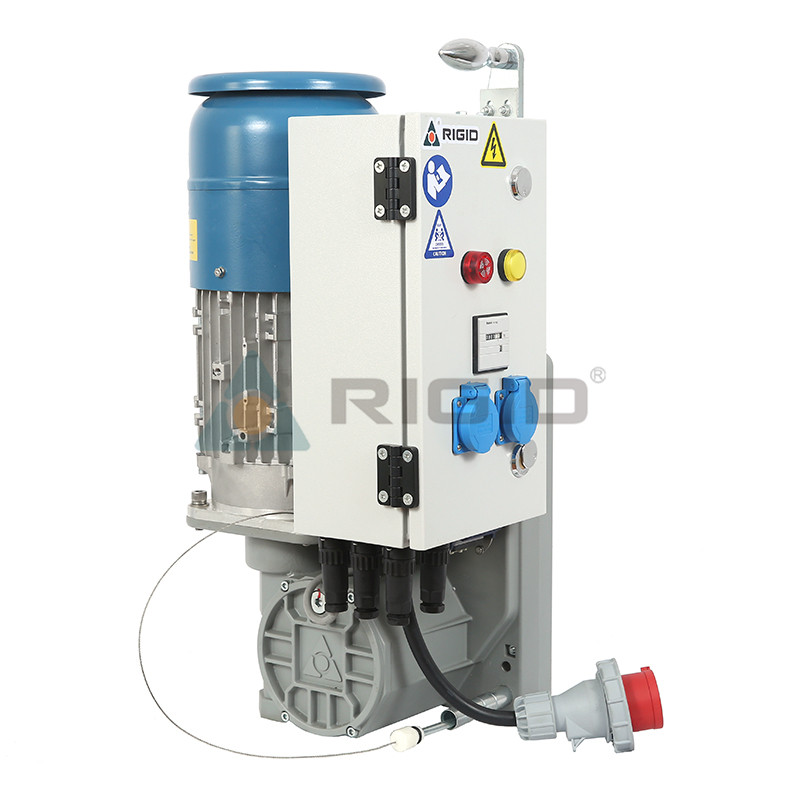

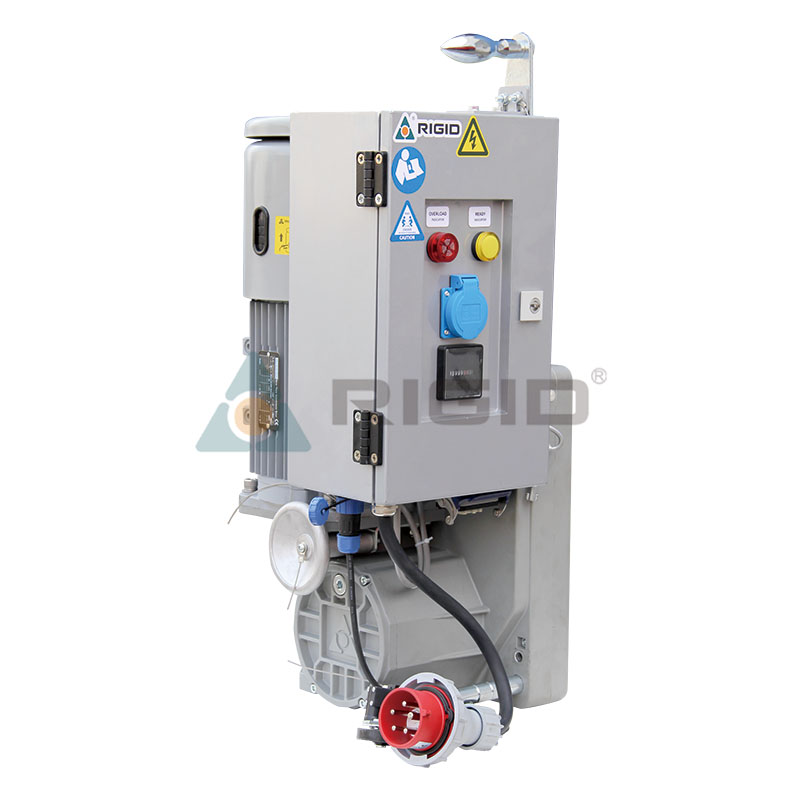

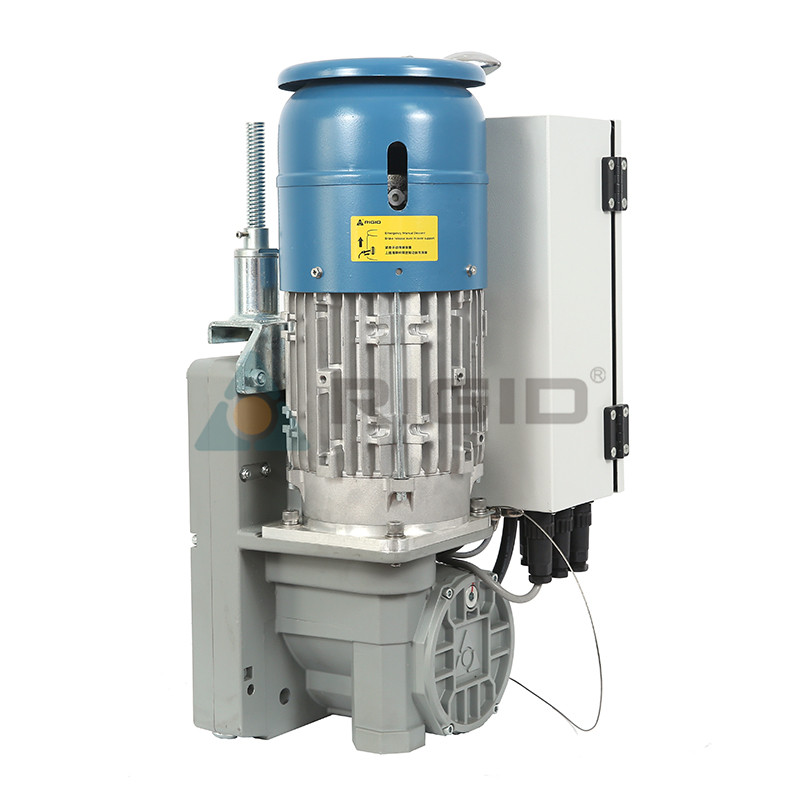

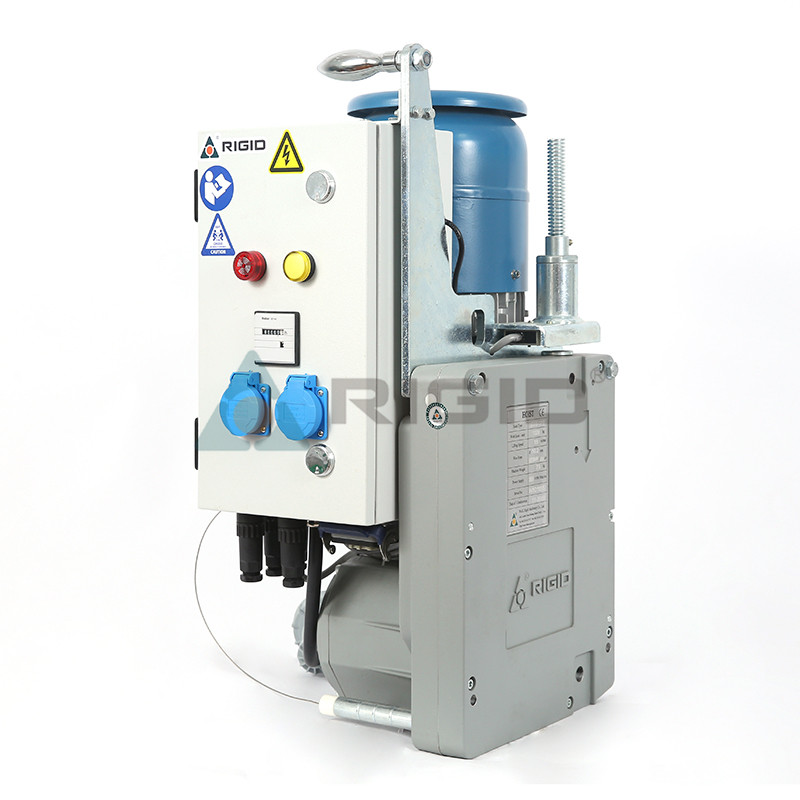

500-1000kg Traction Hoist for Elevator

The rope is not connected which makes it compact, lightweight and very easy to handle. The unrestricted wire rope lengths capability of the Rigid 500-1000kg Traction Hoist For Elevator makes it possible to utilise unlimited lifting heights and traction lengths.

Product Details：

1.The robust, precisely machined housing of die-cast aluminium, ensures a low dead-weight and outstanding rigidity.

2. Gearing and drive sheave is fabricated from hardened steel.

3. Universal attachment of the winches is capable by means of a central 16mm load pin, or two M10 screws.

4. Motor protection: Protected to IP55 as standard.

5. Standard 500-1000kg Traction Hoist For Elevator operating voltage: 380V, 3ph, 50Hz (voltage and frequency are available upon request).

6. Control Voltage: 24V for mobile application units and 42V for the stationary applications models.

7. Phase monitoring: As standard on mobile application models, not available on stationary units.

8. Hoist motor, as standard is fitted with a thermal overload protection device.

9. Certification: Certified by and independent inspection institute (TUV).

10. Drive sheave and pressure rollers of special nitrided steel with a surface hardness of approximately 70 HRC, guaranteeing low wear of these components.

11. The fully-synthetic special oil ensures highest possible efficiency for quiet running characteristics, in a temperature range of -40°C to 70°C.

12. Standardised components ensures easy access to all wearing parts.

Advantages of 500-1000kg Traction Hoist For Elevator:

● Equipped with phase sequence protection and use of timing functions;

● Equipped with external power supply and anti-derailment switch interface;

● External handle switch with emergency-stop protection function;

● Equipped with cordless protection function(optional);

● Adopting an integrated elecronic control system (optional split type).

Technical Parameters
