MT50 Material Lifting Hoist
MT50 Material Lifting Hoist
MT50 Material Lifting Hoist
MT50 Material Lifting Hoist
MT50 Material Lifting Hoist
MT50 Material Lifting Hoist

MT50 Material Lifting Hoist

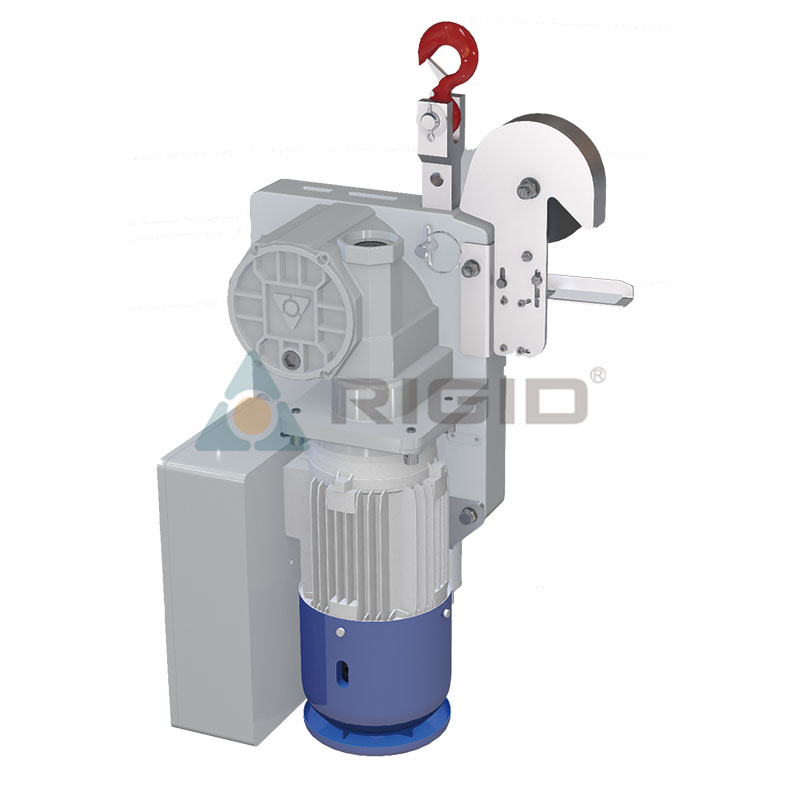

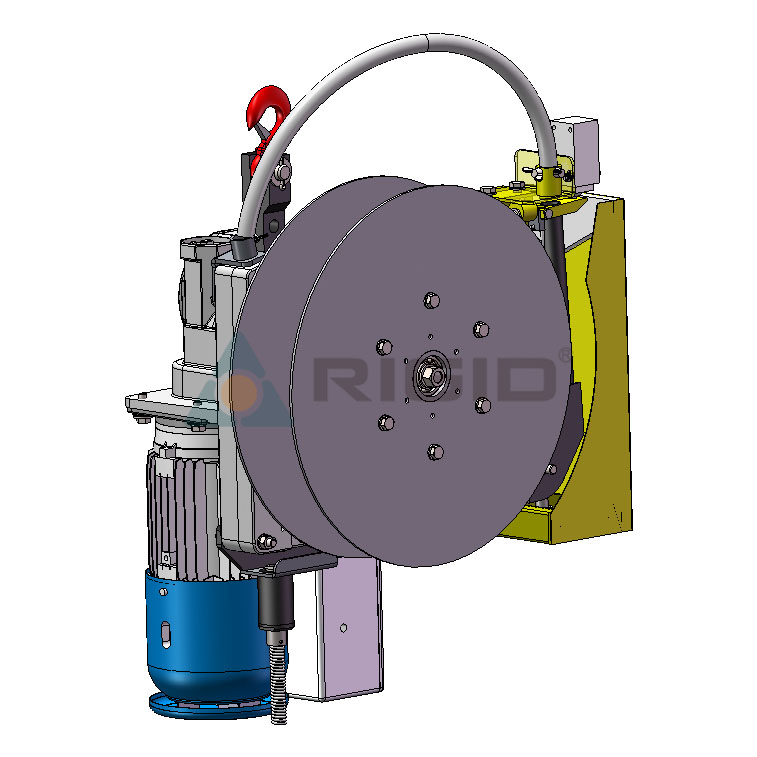

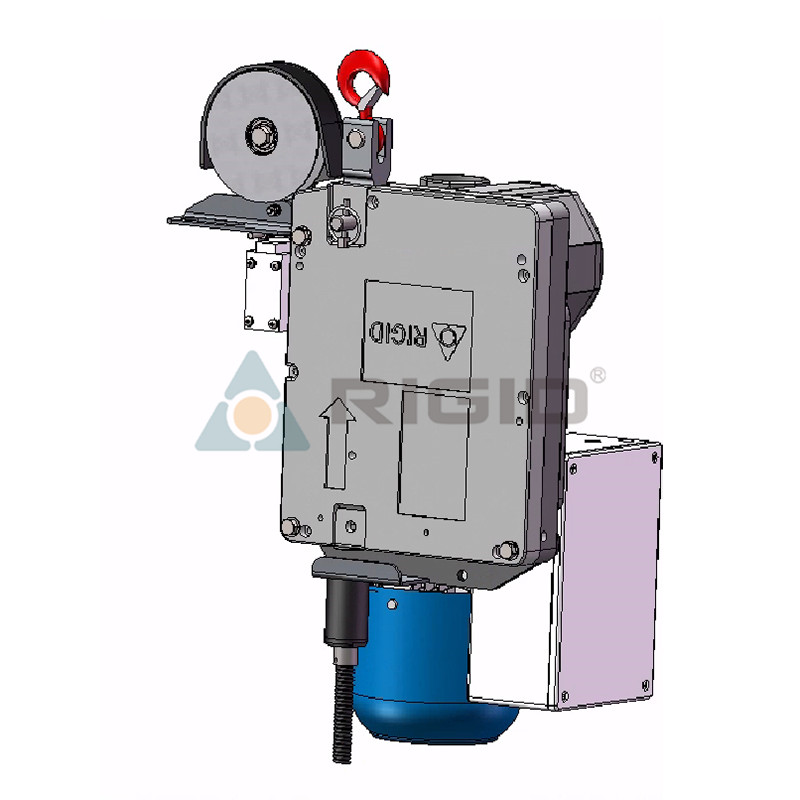

    China Rigid MT50 Material Lifting Hoist is a lightweight cable climber derivative with stable and reliable performance. The MT50 material lifting hoist is easy to install, suitable for machine-room-less elevator lifting rails, and the length of the wire rope is not restricted. The ultimate working load is 500kg and the lifting speed is 9m/min or 18m/min.

Features and Benefits:

1. High-quality MT50 material lifting hoist uses a robust, precision-machined die-cast aluminum housing that ensures low deadweight and excellent rigidity, is powerful and easy to transport, and provides extreme efficiency and durability, even in harsh working conditions.

2. The MT50 material lifting hoist has been developed and designed taking into account all relevant standards and safety regulations, including the configuration of upper and lower limits to effectively prevent wire rope from falling off.

3. Optionally, a long-distance wireless remote control can be installed, with a distance of up to 300 meters.

4. Motor protection: Protected to IP55 as standard.

5. Standard operating voltage: 300V/400V, 1-phase/3-phase, 50Hz (voltage and frequency available on request).


Technical Parameters

Model Capacity
kg
Description Lifting speed
m/min
Rope Diam
mm
Weight
kg
Power Supply
LTD50-8M9 500 Without
Wire Winder
9 8.3 68 400V/3Ph/50Hz
LTD50-8M9VF 500 Without
Wire Winder
9 8.3 68 230V/1Ph/50Hz
MT509 500 With
Wire Winder
9 8.3 82 400V/3Ph/50Hz
MT518 500 With
Wire Winder
18 8.3 82 400V/3Ph/50Hz

For more detailed information about the customized MT50 material lifting hoist, contact your local Rigid distributor.
