Reversing Counterweight Rope Tension Weight
Reversing Counterweight Rope Tension Weight
Reversing Counterweight Rope Tension Weight
Reversing Counterweight Rope Tension Weight
Reversing Counterweight Rope Tension Weight
Reversing Counterweight Rope Tension Weight
Reversing Counterweight Rope Tension Weight
Reversing Counterweight Rope Tension Weight

Reversing Counterweight Rope Tension Weight

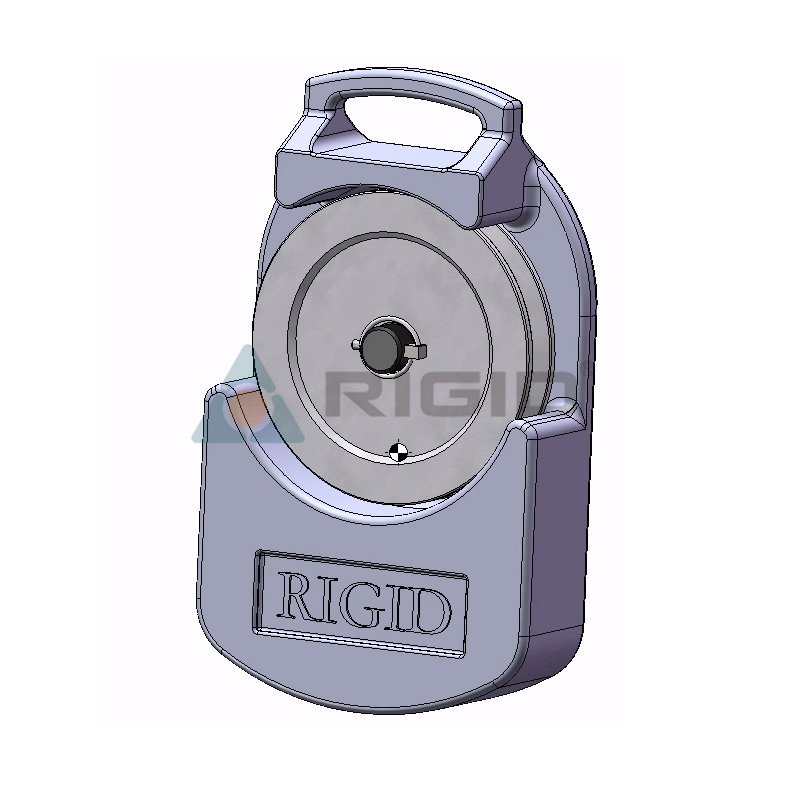

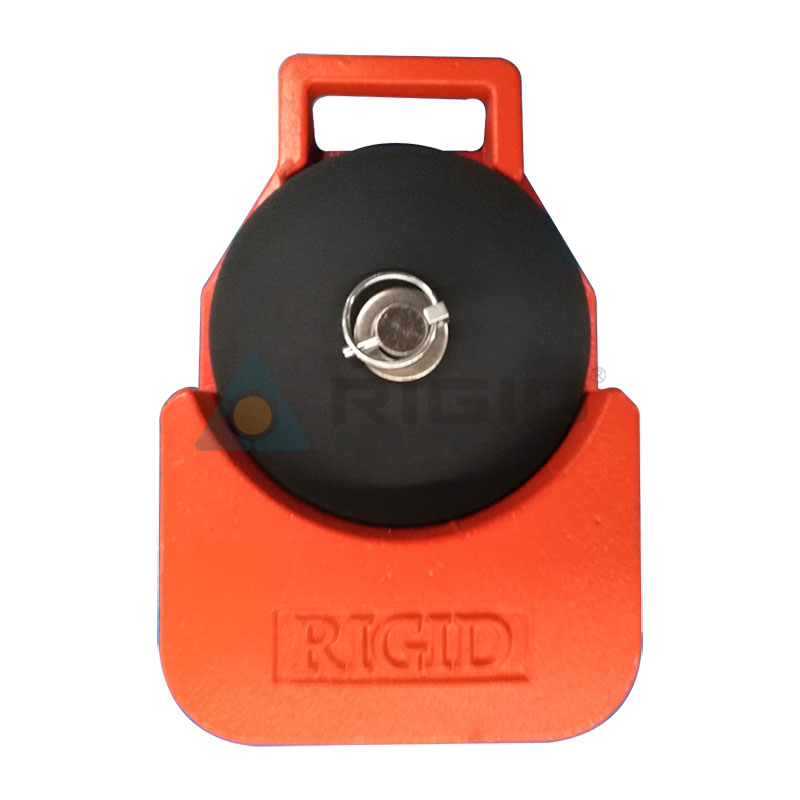

    The Reversing Counterweight Rope Tension Weight are equipped with different types of wire rope reversing counterweights according to 1T or 2T cable climbers.

Reversing Counterweight Rope Tension Weight are usually installed in the pit of the shaft and are used in the 2:1 process of lift installation to reverse the unstressed end of the wire rope back to the platform. Depending on the diameter of the wire rope and the installation process, there are various specifications.


Technical Parameters

Model Description Rope Diam
mm
Weight
kg
024500030 Single nylon wheel 10.2 13
024500041 Single nylon wheel 14.2 22
L24500150 Double Wheel 10.2 6
