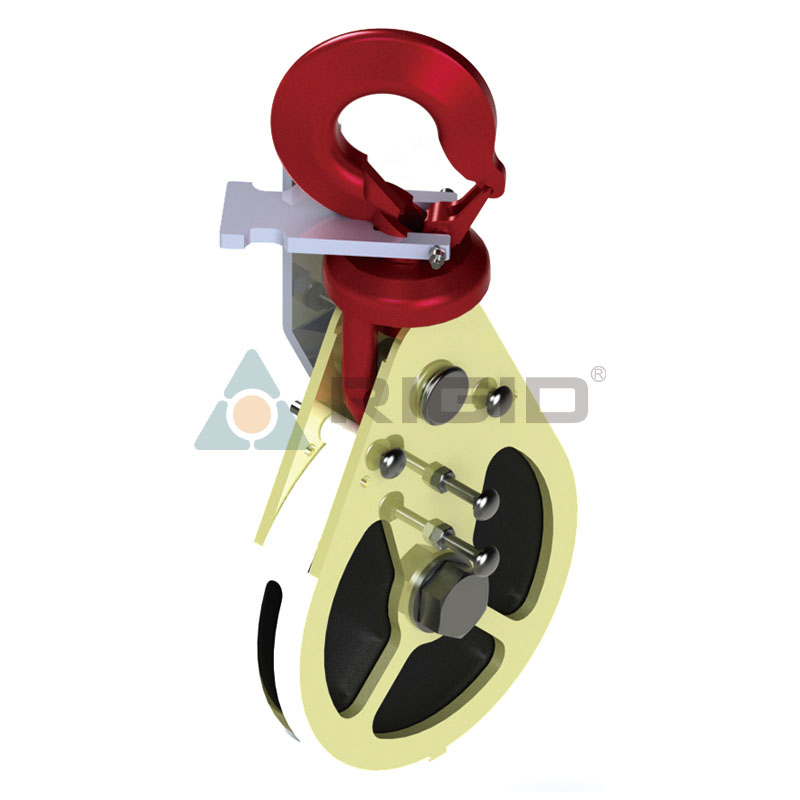

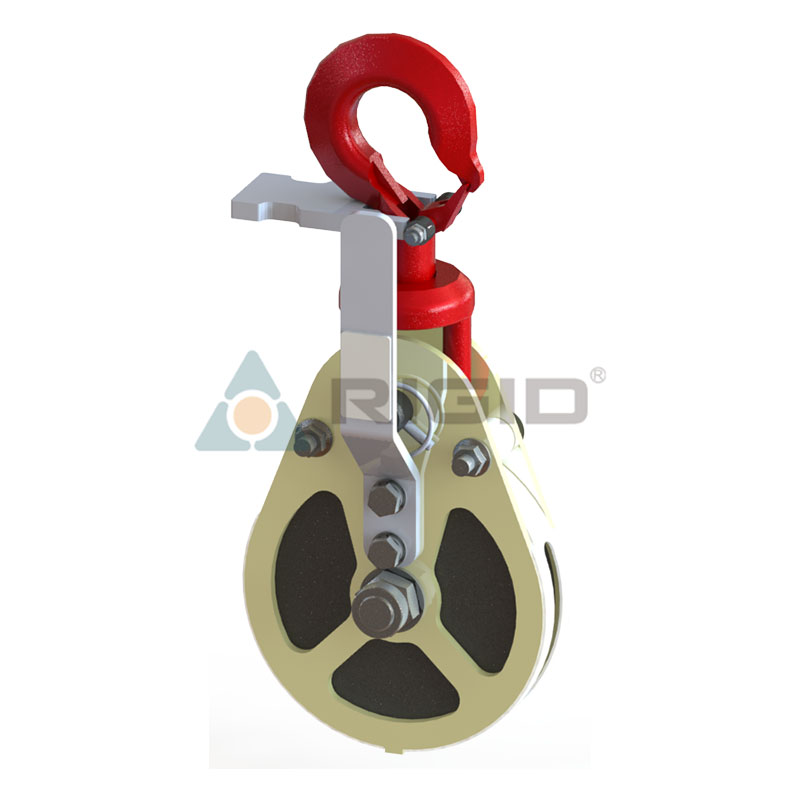

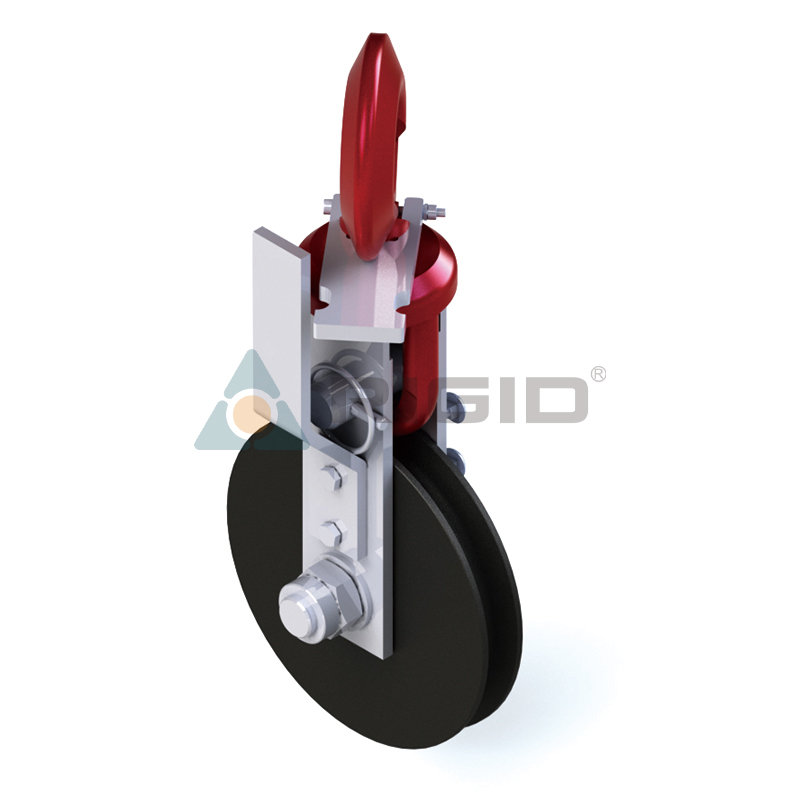

    China Rigid Diverter Pulley Pulley Hook meets European standard EN1808. It is a rope return pulley for slow speed applications. They allow for lifting or rope deflection. Diverter Pulley Pulley Hook are fitted with a swivelling hook that ensures good positioning between the pulley and the rope.

There is no limit to the height and distance at which the China Rigid Diverter Pulley Pulley Hook can be used. High quality Diverter Pulley Pulley Hook can be suspended from fixed or mobile anchor points with appropriate strength corresponding to the required load. Medium pulley for wire rope can be used as a return pulley. The pulley can be easily removed by simply removing the safety pin and then removing the axle (no tools required). Diverter Pulley Pulley Hook are equipped with a steel protective case and a hook with a safety catch to protect the safety of user.


Technical Parameters

Model Capacity
kg
Description Rope Diam
mm
Weight
kg
GL2 2000 Without
sealing plate
10.2 7.2
GL2F 2000 With
sealing plate
10.2 8.2
GL4 4000 Without
sealing plate
14.0 11.5
GL4F 4000 With
sealing plate
14.0 12.5
