China Rigid FC400 false car for elevator installation is one of the safest, most convenient, and effective ways to install elevator tracks and other elevator systems in shafts, and is the most versatile scaffold-free installation tool for elevators. Rigid FC400 false car for elevator installation has one main type of material: aluminum, applicable for construction using 1:1 process.
Fashion FC400 false car for elevator installation has a lightweight design with an all-aluminium platform weighing less than 200kg. Its modular construction for easy installation and transport. Meanwhile, the FC400 false car for elevator installation has double protection with safety lock and safety pliers to ensure construction safety.

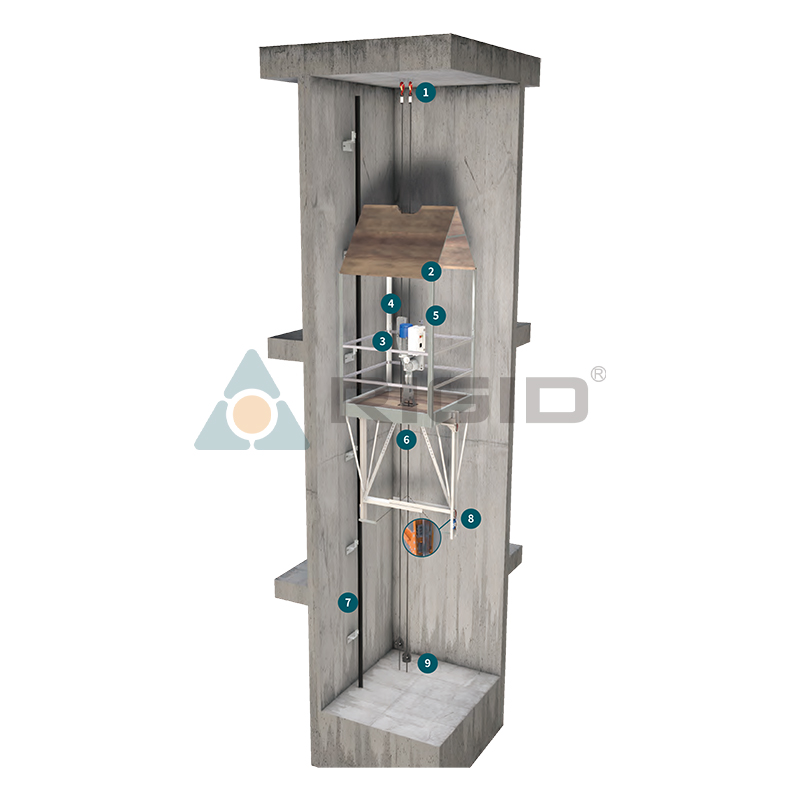

The FC400 false car for elevator installation is composed by:
● Heavy lifting hook
Configuration for 1:1 Process The end of the steel wire rope should be connected by aluminum riveting or standard wedge sleeve; Configuring telescopic rods for easy suspension outside the shaft.
● Canopy
Effectively prevent falling objects from high altitude, assemble with wooden boards according to actual site dimensions.
● Climber
LTD100 multiple speed modes climber optional, speed 9-18m /min;Connecting through the climber adapter platform; Applying Ф 10.2 High-strength steel wire rope.
● Overspeed safety lock
OSL510 Overspeed lock with a rated load of 1,000kg; The platform will automatically lock when it descends more than 30m/min or 42m/min ; Applying Ф 10.2 High-strength steel wire rope.
● Safety lock adapter
The OSL510 safety lock is integrated with the climber through an adapter.
● All aluminum work platform
All aluminum work platform of the FC400 false car for elevator installation is bi-directionally adjustable over the gauge range as needed; Aluminum protective railings should be installed around the platform; The floor shall be of wood not less than 15mm in thickness.
● Anti-derailment protection system
The climber control box is equipped with an anti-derailment switch socket. The anti-derailment switch component should be connected to the climber and installed on the platform to support the guide rail laterally.
● Safety tong assembly
Before operation, it shall be manually adjusted to keep the safety gear in the open state, otherwise the platform will automatically lock; When the steel wire rope of the climber is not under force, it will automatically lock the platform, which is the second falling protection of the platform.
● Heavy hammer
Two heavy hammers are used to maintain the safety lock and the steel wire rope of the climber is suspended vertically.
For FC400 false car for elevator installation, we can provide professional training and guidance at any time.
Technical Parameters
Model |
Capacity kg |
DBG spacin mm |
Extension distance mm |
Weight kg |
Applicable guide rail |
FC400-A20 | 400 | 1200-2000 | 1500-2000 | 150 |
(K=10)T75~T78 (K=16)T89~T127 |
FC400-A26 | 400 | 1500-2600 | 1500-2000 | 170 | |
FC400-A30 | 400 | 1700-3000 | 1500-2000 | 200 |
※ Note: The self-weight exclude lifting device, excluding the self-weight of steel wire ropes and power cables
